Clustering

While each appliance in a cluster is independent and self-contained, all members of a cluster are listed in a special configuration file (typically called appliances.xml) that is site-specific and identical across all appliances in the cluster. The appliances.xml is a simple XML file that contains the ports and URLs of the various webapps in that appliance. Each appliance has a dedicated TCP/IP endpoint called cluster_inetport for cluster operations like cluster membership etc… One startup, the mgmt webapp uses the cluster_inetport of all the appliances in appliances.xml to discover other members of the cluster. This is done using TCP/IP only (no need for broadcast/multicast support).

The business processes are all cluster-aware; the bulk of the inter-appliance communication that happens as part of normal operation is accomplished using JSON/HTTP on the other URLs defined in appliances.xml. All the JSON/HTTP calls from the mgmt webapp are also available to you for use in scripting, see the section on scripting.

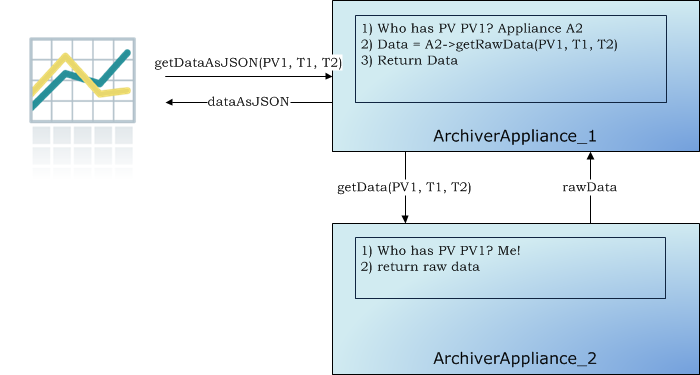

The archiving functionality is split across members of the cluster; that is, each PV that is being archived is being archived by one appliance in the cluster. However, both data retrieval and business requests can be dispatched to any random appliance in the cluster; the appliance has the functionality to route/proxy the request accordingly.

In addition, users do not need to allocate PVs to appliances when requesting for new PVs be archived. The appliances maintain a small set of metrics during their operation and use this in addition to the measured event and storage rates to do an automated Capacity Planning/load balancing.
